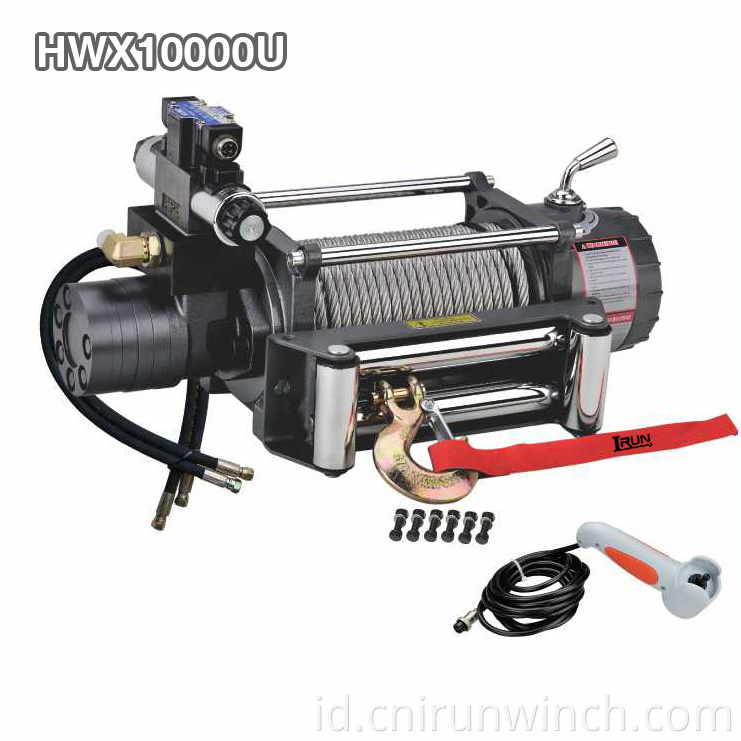

Model No: HWX10000U
Merek: PESANAN OEM DAPAT DITERIMA
Origin: CINA
Sumber Daya: Hidrolik
Aplikasi: MOBIL
Kemasan: KARTON EKSPOR ATAU PALLET KAYU
Transportasi: Ocean,Air
Tempat asal: CINA
Pelabuhan: NIGBO,SHANGHAI
Jenis pembayaran: L/C,T/T,D/P
Inkoterm: FOB,CFR,CIF
Derek Hidraulik kami memberi Anda solusi tugas berkelanjutan untuk kebutuhan winch Anda. Dirancang dengan komersial paling cerdas
Dalam penerapannya, semua derek memiliki keandalan total terhadap tarikan tangan yang berkelanjutan.
Winch Hidraulik 10000 LBS Item No.HWX10000A - Winch Hidarulik 10000 lbs
Fitur:
| SPECIFICATION | |
| Rated line pull | 10000 lbs (4536kgs) |
| Motor: permanent magnet | 65ml/r |
| Oil Flow | 5~45L/min |
| Pressure | 10Mpa |
| Gear reduction ratio | 28:1 |
| Cable (Dia.× L) | Ø3/8 “×85.3 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48″×8. 8″ (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
|
Line pull lbs (kgs) |
Pressure Mpa(Psi) |
Flow G/min (L/min) |
Line speed ft/min(m/min) |
|
0 |
2.0(290.1) |
1.3(5) |
2.0 (0.6) |
|
4000(1814) |
3.8(551.1) |
2.6(10) |
3.6(1.1) |
|
6000(2722) |
7.2(1044.2) |
5.3(20) |
7.5(2.3) |
|
8000(3629) |
8.6(1247.3) |
9.2(35) |
13.1(4.0) |
|
10000(4536) |
10.0(1450.3) |
11.9(45) |
17.4(5.3) |
|
Layer of cable |
Rated line pull lbs(kgs) |
Total rope on drum ft (m) |
|
|
1 |
10000(4536) |
17.4(5.3) |
|
|
2 |
7969(3615) |
39.4(12.0) |
|
|
3 |
6624(3005) |
65.0(19.8) |
|
|
4 |
5667(2571) |
85.3(26.0) |

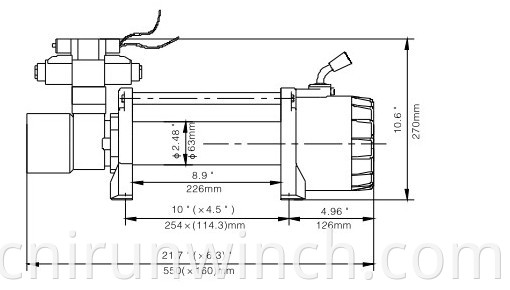

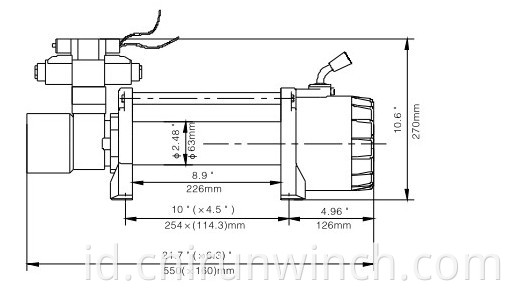

| ITEM | HWX10000A | HWX10000U | |
| Overall dimensions | 21.7″×6.9″×8.5″ | 21.7″×6.9″×10.6″ | |
| (L×W×H) | 550mm×174mm×217mm | 550mm×174mm×270mm | |
| Net weight (Ibs) | 91.0 | 91.0 | |
| (kgs) | 41.3 | 41.1 |
Dimensi Keseluruhan 21,6″ x 6,3″ x 8,7″
(P x L x T) 550mm x 160mm x 220mm
Berat Bersih 41,3 KG
Kategori Produk : Derek 4wd Hidrolik > Hidrolik 4x4 Winch
