Model No: HWX8000A
Merek: PESANAN OEM DAPAT DITERIMA
Origin: CINA
Sumber Daya: Hidrolik
Aplikasi: ATV / UTV, MOBIL
Kemasan: KARTON EKSPOR ATAU KASUS KAYU
Transportasi: Ocean,Air
Tempat asal: CINA
Pelabuhan: NINGBO,SHANGHAI
Jenis pembayaran: L/C,T/T,D/P
Inkoterm: FOB,CFR,CIF

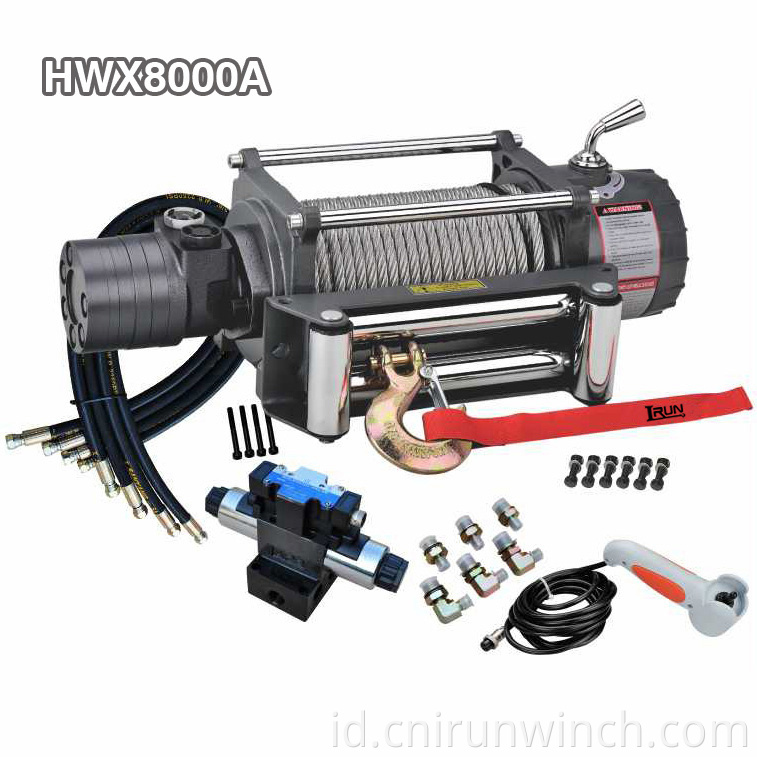

Winch hidraulik Offroad 4x4 kami, Winch Hidraulik 8000 lbs Item No. HWX8000A dilengkapi dengan katup listrik dan selang oli karet.
Derek Hidraulik kami memberi Anda solusi tugas berkelanjutan untuk kebutuhan winch Anda. Dirancang dengan mempertimbangkan aplikasi komersial paling cerdas, semua derek memiliki keandalan total untuk menarik tarikan yang berkelanjutan.
Fitur:
1. Gigi peredam baja penuh
2. Motor kerja stabil aliran oli rendah
3. Penggerak pompa tenaga kemudi kendaraan yang ada
4. Kopling cincin gead geser
5. Tindakan pengereman kerucut sekrup otomatis
6. Kopling spooling gratis
7. Penggerak daya DC 12V atau DC 24V opsional
8. Kawat kendali jarak jauh
9. Remote kontrol nirkabel tersedia
10. Tensioner SWR tersedia
11. Tidak dapat digunakan sebagai lift
HWX8000U/A
| SPECIFICATION | |
| Rated line pull | 8000 lbs (3629kgs) |
| Motor: permanent magnet | 65ml/r |
| Oil Flow | 5~45L/min |
| Pressure | 8.5Mpa |
| Gear reduction ratio | 28:1 |
| Cable (Dia.× L) | Ø21/64″×95 ‘ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48″×8. 8″ (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
|
Line pull lbs (kgs) |
Pressure Mpa(Psi) |
Flow G/min (L/min) |
Line speed ft/min(m/min) |
|
0 |
2.0(290.1) |
1.3(5) |
1.6(0.5) |
|
4000(1814) |
3.6(522.1) |
2.6(10) |
3.6(1.1) |
|
6000(2722) |
6.5(942.7) |
5.3(20) |
7.5(2.3) |
|
8000(3629) |
8.5(1232.8) |
9.2(35) |
12.8(3.9) |
|
11.9(45) |
17.4(5.3) |
|
Layer of cable |
Rated line pull lbs(kgs) |
Total rope on drum ft (m) |
|
|
1 |
8000(3629) |
20.0(6.1) |
|
|
2 |
6529(2962) |
44.3(13.5) |
|
|
3 |
5515(2502) |
72.2(22.0) |
|
|
4 |
4773(2165) |
95.1(29.0) |

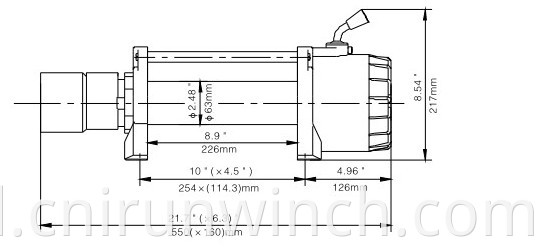

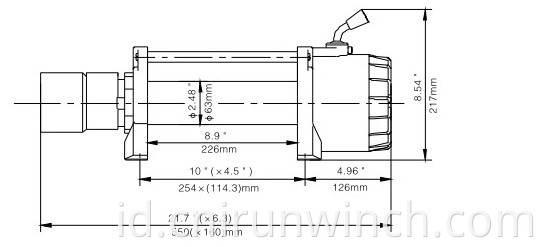

| ITEM | HWX8000A | HWX8000U | |
| Overall dimensions | 21.7″×6.9″×8.5″ | 21.7″×6.9″×10.6″ | |
| (L×W×H) | 550mm×174mm ×217mm | 550mm×174mm ×270mm | |
| Net weight (Ibs) | 87.5 | 87 | |
| (kgs) | 39.7 | 39.5 |
Dimensi Keseluruhan 21,6″ x 6,3″ x 8,54″
(P x L x T) 550mm x 160mm x 217mm
Berat Bersih 39,7 KG
Kategori Produk : Derek 4wd Hidrolik > Hidrolik 4x4 Winch
