Model No: EWD12000
Merek: PESANAN OEM DAPAT DITERIMA
Origin: CINA
Sumber Daya: Listrik
Aplikasi: ATV / UTV
Tegangan: 24V, 12 V
Kemasan: EKSPOR KARTON
Transportasi: Ocean,Air
Tempat asal: CINA
Pelabuhan: NINGBO,SHANGHAI
Jenis pembayaran: L/C,T/T,D/P
Inkoterm: FOB,CFR,CIF
Winch seri EWD adalah winch listrik dua kecepatan yang sempurna dengan Max. Gaya tarik 5,500 lbs pada kecepatan tinggi. Perpindahan kecepatan dan kontrol kopling dapat diaktifkan secara bersamaan untuk memberikan kenyamanan lebih bagi pengguna.

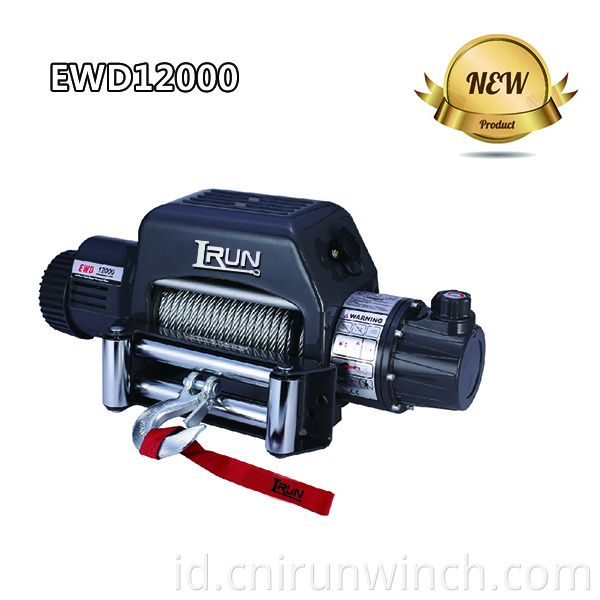

Winch Listrik Kecepatan Ganda 12000lbs Item No. EWD12000
Fitur:
EWD 12000
| Specification: | ||||
| Rated line pull | 12000 lbs (5443 kg) | |||
| Motor: Series wound | 12V:Input: 5.4kW / 7.2hp | |||
| Output: 2.4kW / 3.2hp | ||||
| 24V:Input: 4.8kW / 6.4hp | ||||
| Output: 3.1kW / 4.2hp | ||||
| Gear reduction ratio | 267:1 (Low speed); 86:1 (High speed) | |||
| Cable (Dia.× L) | Ø13/32 “×83. 7′ (Ø10.2mm×25.5m) | |||
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) | |||
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 | |||
| Low Speed | High Speed | ||||||||
| Line Pull Lbs.(kg) | Line Speed ft/min(m/min) | Current
A |
Line Pull Lbs.(kg) | Line Speed ft/min(m/min) | Current
A |
||||
| 12DC | 24DC | 12DC | 24DC | 12DC | 24DC | 12DC | 24DC | ||
| 0 | 29.5(9.0) | 31.2(9.5) | 70 | 60 | 0 | 88.6(27.0) | 91.9(28.0) | 75 | 60 |
| 6000(2722) | 7.9(2.4) | 9.2(2.8) | 250 | 130 | 3000(1391) | 22.3(6.8) | 23.3(7.1) | 250 | 150 |
| 9000(4082) | 6.6(2.0) | 7.5(2.3) | 345 | 160 | 4000(1814) | 13.8(4.2) | 19.0(6.0) | 400 | 190 |
| 12000(5443) | 4.9(1.5) | 6.2(1.9) | 450 | 200 | 5000(2268) | 10.5(3.2) | 14.8(4.5) | 490 | 240 |
| Line pull and rope capacity in layer | ||
| Layer of cable | Rated line pull Lbs. (kg) | Total rope on drum ft (m) |
| 1 | 12000(5443) | 16.1(4.9) |
| 2 | 9562(4337) | 36.4(11.1) |
| 3 | 7948(3605) | 60.0(18.3) |
| 4 | 6800(3084) | 83.7(25.5) |

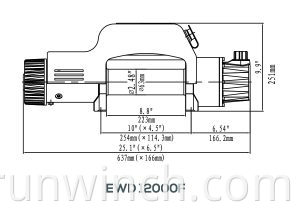

| ITEM | EWD 12000U | EWD 12000S | EWD 12000F |
| Overall dimensions | 25.1″×6.3″×10.0″ | 25.1″×6.3″×11.1″ | 25.1″×6.5″×9.9″ |
| (L×W×H) | 637mm×160mm×254mm | 637mm×160mm×283mm | 637mm×166mm×251mm |
| Net weight (Ibs/kg) | 90.4lbs / 41.0kg | 92.6lbs / 42kg | 97lbs / 44kg |
Kategori Produk : Derek Listrik > 2 Kecepatan Listrik Winch
