Model No: EWD8000
Merek: PESANAN OEM DAPAT DITERIMA
Origin: CINA
Sumber Daya: Listrik
Aplikasi: ATV / UTV
Tegangan: 24V, 12 V
Kemasan: EKSPOR KARTON
Transportasi: Ocean,Air
Tempat asal: CINA
Pelabuhan: NINGBO,SHANGHAI
Jenis pembayaran: L/C,T/T,D/P
Inkoterm: FOB,CFR,CIF
Seri Winch SERI EWD adalah derek listrik dua kecepatan yang sempurna dengan Max. Gaya tarik 5,500 lbs pada kecepatan tinggi. Perpindahan kecepatan dan kontrol kopling dapat diaktifkan secara bersamaan untuk memberikan kenyamanan lebih bagi pengguna.

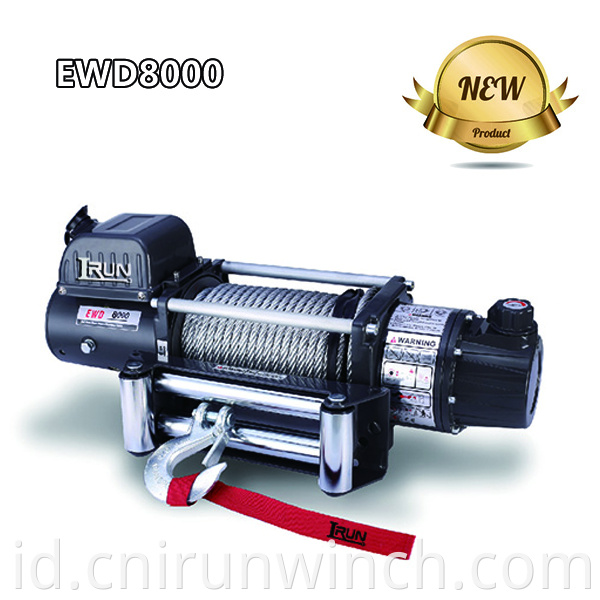

Winch Pemulihan Listrik Kecepatan Ganda 8000 Lbs Dengan Kopling Desain Baru Item No. EWD8000
Winch ini memiliki kapasitas tarik terukur sebesar 8000 pon dengan dua kecepatan opsional untuk pengoperasian sebenarnya. Perpindahan kecepatan dan kontrol kopling
adalah desain paten kami.
Fitur:
EWD 8000
| Specification: | ||||
| Rated line pull | 8000 lbs (3629 kg) | |||
| Motor: Series wound | 12V: Input: 3.4kW / 4.6hp | |||
| Output: 2.0kW / 2.7hp | ||||
| 24V: Input: 3.1kW / 4.2hp | ||||
| Output: 2.6kW / 3.5hp | ||||
| Gear reduction ratio | 267:1 (Low speed); 86:1 (High speed) | |||
| Cable (Dia.× L) | Ø21/64 “×95 ‘ (Ø8.3mm×29m) | |||
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) | |||
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 | |||
| Low Speed | High Speed | ||||||||
| Line Pull Lbs.(kg) | Line Speed ft/min(m/min) | Current A |
Line Pull Lbs.(kg) | Line Speed ft/min(m/min) | Current A |
||||
| 12DC | 24DC | 12DC | 24DC | 12DC | 24DC | 12DC | 24DC | ||
| 0 | 28.9(8.8) | 19.7(9.2) | 70 | 50 | 0 | 78.7(24.0) | 82(25.0) | 75 | 60 |
| 4000(1814) | 9.8(3.0) | 10.5(3.2) | 190 | 80 | 2000(907) | 25.9(7.9) | 22.3(6.8) | 245 | 115 |
| 6000(2722) | 8.6(2.7) | 9.2(2.8) | 230 | 100 | 3000(1391) | 20.3(6.2) | 19.0(5.8) | 300 | 135 |
| 8000(3629) | 7.2(2.0) | 7.9(2.4) | 280 | 130 | 4000(1814) | 16.4(5.0) | 17.1(5.2) | 365 | 170 |
| Line pull and rope capacity in layer | ||
| Layer of cable | Rated line pull Lbs. (kg) | Total rope on drum ft (m) |
| 1 | 8000(3629) | 20.0(6.1) |
| 2 | 6529(2962) | 44.3(13.5) |
| 3 | 5515(2502) | 72.0(22.0) |
| 4 | 4773(2165) | 95.1(29.0) |

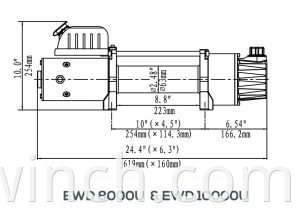

| ITEM | EWD 8000U | EWD 8000S | EWD 8000F |
| Overall dimensions | 24.4″×6.3″×10.0″ | 24.4″×6.3″×11.1″ | 24.4″×6.5″×9.9″ |
| (L×W×H) | 619mm×160mm×254mm | 619mm×160mm×283mm | 619mm×166mm×251mm |
| Net weight (Ibs/kg) | 77.2lbs / 35.0kg | 83.8lbs / 38kg | 88.2lbs / 40kg |
Kategori Produk : Derek Listrik > 2 Kecepatan Listrik Winch
