Model No: EWT3500A
Merek: PESANAN OEM DAPAT DITERIMA
Origin: CINA
Sumber Daya: Listrik
Aplikasi: ATV / UTV
Tegangan: 24V, 12 V
Kemasan: EKSPOR KARTON
Transportasi: Ocean,Air
Tempat asal: CINA
Pelabuhan: NINGBO,CHINA
Jenis pembayaran: L/C,T/T,D/P
Inkoterm: FOB,CFR,CIF

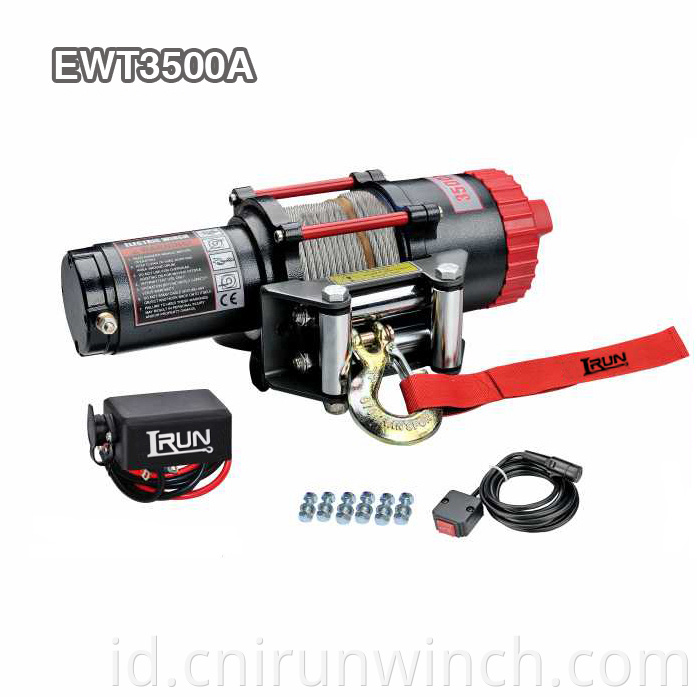

Winch UTV Listrik 3500lb Item No.EWT3500A
Fitur:
1. Gigi peredam baja gratis
2. Struktur kopling paten
3. Kopling spooling gratis
4. Tindakan pengereman kerucut sekrup otomatis
5. Penggerak daya DC 12V atau DC 24V opsional
6. Kontrol saklar kerja yang tinggi secara langsung
7. Kontrol sakelar stang ATV
EWT3500
| SPECIFICATION | |
| Rated line pull | 3500 lbs (1588 kgs) |
| Motor: permanent magnet | 12V:Input: 2.0kW / 2.7hp; Output: 0.9 kW / 1.2hp
24V:Input: 2.4kW / 3.2hp; Output: 1.0 kW / 1.3hp |
| Gear reduction ratio | 166:1 |
| Cable (Dia.× L) | Ø 7/32″×44.0′ (Ø5.4mm×13.4m) |
| Drum size (Dia.× L) | Ø 2.0″×3.2″ (Ø50.4mm×82 mm) |
| Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 3500(1588) | 8.5(2.6) | |
| 0 | 14.4(4.4) | 14.4(4.4) | 28 | 14 | 2 | 2932(1331) | 18.7(5.7) |
| 1000(454) | 9.8(3.0) | 11.1(3.4) | 80 | 50 | 3 | 2523(1145) | 29.8(9.1) |
| 2500(1134) | 7.2(2.2) | 8.8(2.7) | 150 | 70 | 4 | 2214(1005) | 44.0(13.4) |
| 3500(1588) | 5.9(1.8) | 4.9(1.5) | 170 | 100 | 5 | ||
| ITEM | EWT3500D | EWT3500A | EWT3500U |
| Overall dimensions | 14.3″×4.5″×4.8″
368mm×115mm×123 mm |
14.3″×4.5″×4.8″
368mm×115mm×123 mm |
14.6″×4.5″×6.3″
372mm×115mm×160 mm |
| (L×W×H) | |||
| Net weight (Ibs) | 24.7 | 27.1 | 26.9 |
| (kgs) | 11.2 | 12.3 | 12.2 |

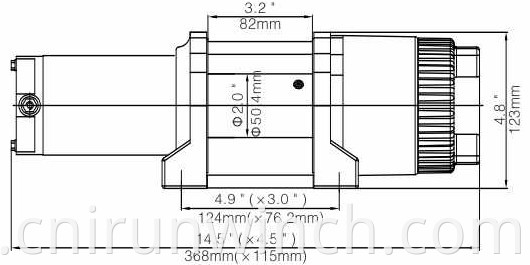

Dimensi keseluruhan: 14,3″x4.5″x4.8″
(PxLxT) 368mmx115mmx123mm
Berat Bersih: 12,3 kg
Kategori Produk : Derek Atv Dan Utv > Winch Berdampingan
