Model No: EWX9500U
Merek: PESANAN OEM DAPAT DITERIMA
Origin: CINA
Sumber Daya: Listrik
Aplikasi: ATV / UTV
Tegangan: 24V, 12 V
Kemasan: EKSPOR KARTON
Transportasi: Ocean,Air
Tempat asal: CINA
Pelabuhan: NINGBO,SHANGHAI
Jenis pembayaran: L/C,T/T,D/P
Inkoterm: FOB,CFR,CIF
EWX9500U

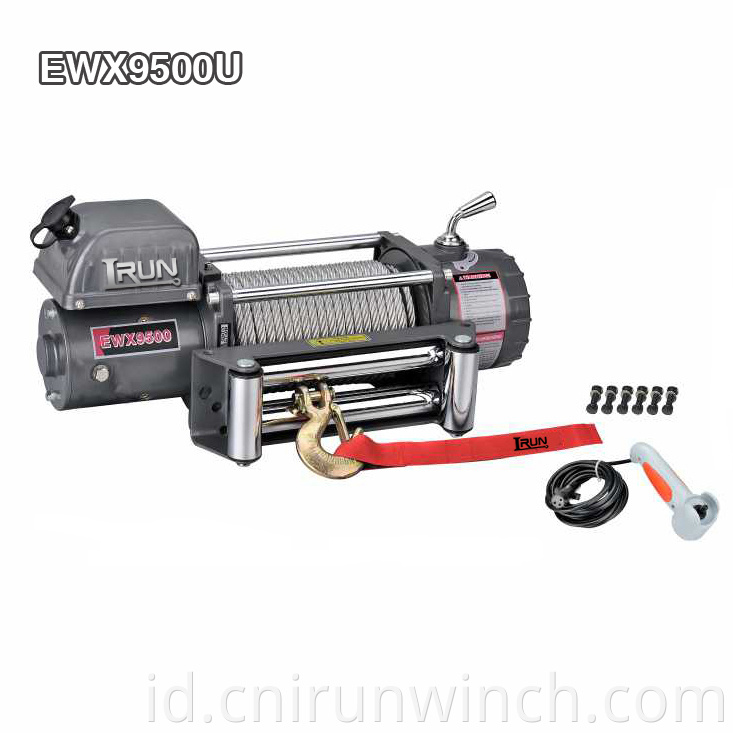

Winch Pemulihan Listrik 9500 lbs Model No. EWX9500U dilengkapi dengan kotak kontrol pada motor winch. Ini mewakili winch pemulihan seberat 9500 pon dari Seri EWX yang memiliki efisiensi sempurna, tarikan stabil, dan desain kompak. Derek Seri ini memiliki desain paten peredam roda gigi planet tiga tahap yang menjadikan derek memiliki efisiensi transmisi ekstrem dan pengoperasian keselamatan yang andal
Fitur:
1. Gigi peredam baja penuh
2. Patenkan peredam roda gigi planet tiga tahap
3. Kopling spooling gratis
4. Tindakan pengereman kerucut sekrup otomatis
5. Motor Luka Seri Pendek
6. Penggerak daya DC 12V atau DC 24V opsional
7. Remote control melalui kotak kontrol dan saklar
8. Remote control nirkabel tersedia tipe F yang dipasang di kotak kontrol
9. Tensioner SWR tersedia
EWX9500
| SPECIFICATION | |
| Rated line pull | 9500 lbs (4309 kgs) |
| Motor: Series Wound | 12V:Input: 4.6kW / 6.1hp; Output: 2.1kW / 2.8hp |
| 24V:Input: 6.5kW / 8.7hp; Output: 2.8kW / 3.8hp | |
| Gear reduction ratio | 230:1 |
| Cable (Dia.× L) | Ø3/8″×85 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 |
| Pull Speed Amperes Volts First layer | Line Pull And Rope Capacity In Layer | ||||||
| Line Pull
Ibs (kgs) |
Line Speed
Ft/min (m/min) |
Current
A |
Layer
of cable |
Rated line pull
lbs(kgs) |
Total Rope On Drum
ft (m) |
||
| 12V DC | 24V DC | 12V DC | 24V DC | 1 | 9500(4309) | 17.4(5.3) | |
| 0 | 19.7 (6.0) | 22.3 (6.8) | 80 | 70 | 2 | 7706(3495) | 39.4(12.0) |
| 3000(1361) | 12.5 (3.8) | 16.4(5.0) | 170 | 140 | 3 | 6482(2940) | 65.0(19.8) |
| 6000(2722) | 9.8(3.0) | 12.8 (3.9) | 260 | 210 | 4 | 5593(2537) | 85.3(26.0) |
| 9500(4309) | 6.2(1.9) | 9.5(2.9) | 380 | 270 | |||
| ITEM | EWX9500U | EWX9500S | EWX9500F |
| Overall dimensions | 21.3″×6.3″×10.0″ | 21.3″×6.3″×11.1″ | 21.3″×6.3″×9.9″ |
| (L×W×H) | 292mm×113mm×108mm | 292mm×113mm×108mm | 308mm×113mm×150mm |
| Net weight (Ibs) | 80.7 | 81.7 | 86.5 |
| (kgs) | 36.6 | 37.1 | 39.2 |

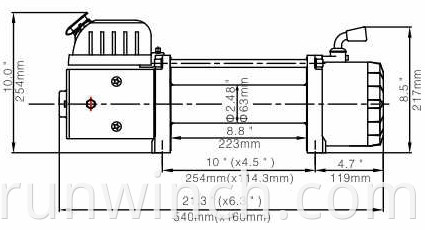

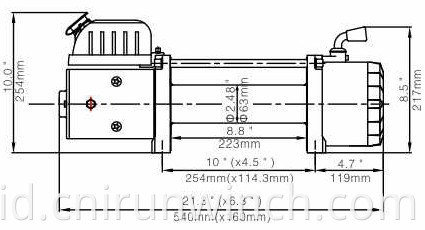

Dimensi Keseluruhan： 21,3″ x 6,3″ x 10″
(P x L x T) 540mm x 160mm x 254mm
Berat Bersih： 36,6 KG
Kategori Produk : Derek Listrik > Winch Pemulihan
